OVERVIEW

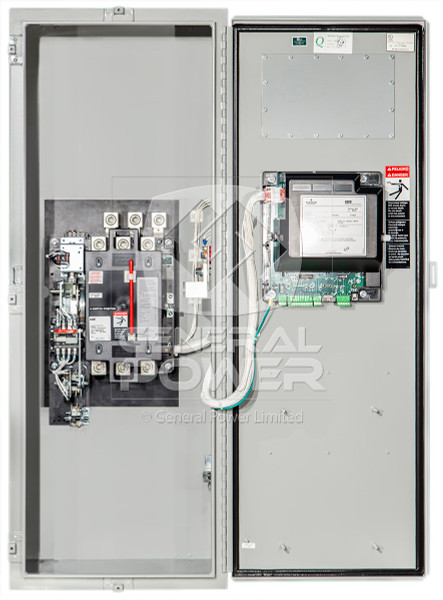

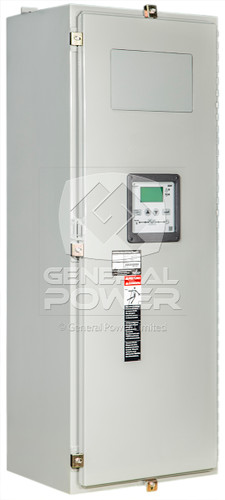

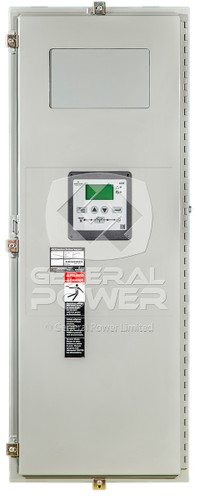

260 AMP ASCO Transfer Switch, 3 Pole NEMA3R 480V
ASCO ATS Series 300 3ATSA30260NG0F
ASCO Series 300:
• 260 Amps 3ATSA 30260NGOF
• 400 Amps 3ATSA 30400NG0F
• 600 Amps 3ATSA 30600NGOF
• 800 Amps 3ATSA 30800NG0F
• 1000 Amps 3ATSA 31000NG0F
It can happen in a split second. A bolt of lightning, equipment failure or a simple blackout can hit without warning and your electrical power is gone. Although out of your control, the result can be both costly and unproductive. The ASCO 260 Amps 3 Poles NEMA3R 480V Automatic Transfer Switch will give you 24 hours a day, 7 days a week power outage protection for your light industrial needs.
What is an Automatic Transfer Switch?
When your electrical power is lost the ASCO Series 300 Automatic Transfer Switch (ATS) uses standardized pre-engineered design to transfer your power load from your utility to your generator. Its built-in controller constantly monitors the power to detect interruptions and deviations that are below par.
The ATS will transfer the load back to your utility once your power is restored and stabilized. After a time delay it will automatically shut down the generator, eliminating the need to manually monitor and control the transfer of power.
How does the ASCO 260 Amps 3 Poles NEMA3R 480V Automatic Transfer Switch function?
• First and foremost the function of the ASCO 260 Amps 3 poles NEMA3R 480V ATS is to provide emergency power backup.
• The system consists of a generator engine and an Automatic Transfer Switch. Optional modification accessory kits are available.
• The ATS incorporates the ASCO Microprocessor Controller, the most reliable processor in today’s power industry. All the connectivity functions, voltage, frequency, control logic, and timing required for most emergency and standby power applications are included.
Features of the ASCO 260 Amps 3 Poles NEMA3R 480V Automatic Transfer Switch
• Listed to UL standard for total system loads
• Controller is RoHS compliant (Restriction of Hazardous Substances).
• Adjustable time-delay feature prevents the switch from being activated due to momentary utility power outages.
• Password protected to prevent unauthorized tampering of settings.
• Compact design makes it easy to install, inspect and maintain.
• Visual LED indicators verify the status of the transfer switch. Feature settings can be adjusted without opening the enclosure door.
• Transfer test switch.
• The single solenoid design derives its power from the source to which the load is being transferred, eliminating the danger of power being transferred back into the dead utility line.
Advantages of your ASCO 260 Amps 3 poles NEMA3R 480V Automatic Transfer Switch
The 300 series ASCO ATS is certified factory original. Since 1920, ASCO has provided world-class power transfer technology and outage protection in addition to:
• Award-winning and prompt customer support
• Immediate delivery via same day shipping
• Sturdy construction and proven performance assuring many years of complete dependability
• 24 month limited warranty against defects and workmanship
Now that you have made a major investment by purchasing your generator, make sure you only use original parts for high quality, high performance operation. Don’t be fooled by sellers of low quality, uncertified counterfeit parts.
Business continuity is critical. Continuous power is absolutely essential for your commercial office buildings, educational institutions, financial establishments and industrial plants. When you buy original, you buy maximum reliability, outstanding value and the peace of mind of knowing your business will always be there.
