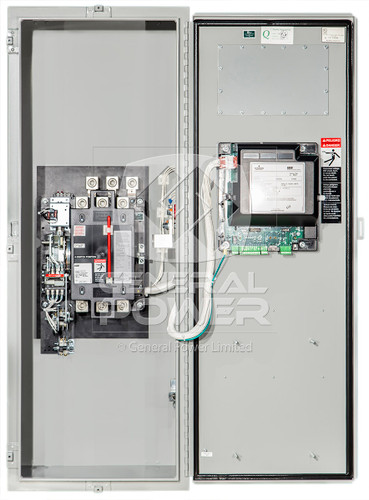

230 AMP ASCO Transfer Switch, 3 Pole NEMA3R 480V
ASCO ATS Series 300 3ATSA30230NG0F

An automatic transfer switch is like a small brain with a single thought function: to protect your equipment and procedures by switching power loads from grid to generators at the appropriate time. The ability to switch power loads without the knowledge or action of a human worker can save companies from disastrous results. Imagine an agricultural warehouse full of products that must be kept at appropriate temperatures; If power goes out at night, product can go bad before someone arrives to handle the issue. An Automatic Transfer Switch can take care of the problem immediately and the functionality of the ASCO 230 Amps NEMA3R 480V switch works well in commercial, light industrial, retail and warehouse environments.

What is an Automatic Transfer Switch?

An Automatic Transfer Switch is a mechanism that switches the draw of power from the electrical grid to a generator, or series of generators, set up for a facility. Unlike a manual switch, which always requires human intervention, an automatic switch can act on its own to make the necessary changes to keep a facility or critical equipment powered up.

How does the ASCO 230 Amps NEMA3R 480V Automatic Transfer Switch operate?

The Automatic Transfer Switch is equipped with logical programming that lets it determine when power on the grid has failed or is abnormal. When that occurs, the switch directs the generators to power up. Once generators are able to produce the right amount of voltage for the machines or facility, the automatic switch takes power load from the grid and places it on the generator. Once grid power is restored and is functioning appropriately, the Automatic Transfer Switch recognizes that and returns facility power loads to the grid. After a set amount of time, the switch directs the generators to power down.

Features of the ASCO 230 Amps NEMA3R 480V Automatic Transfer Switch

• All of the ASCO Series 300 Automatic Transfer Switches are built to meet industry and safety requirements, including National Electrical Code and RoHS regulations.

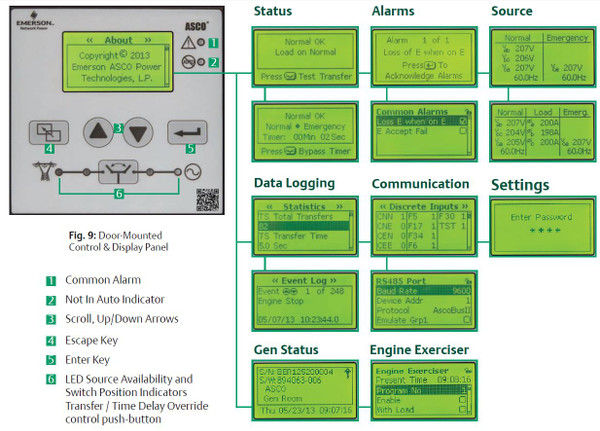

• A graphical interface makes it easy to maintain and navigate switch programming.

• Non-automatic operation is available for manual switching needs.

• Diagnostic and testing functions let you ensure the switch is working at all times.

• Available reports include statistical ATS monitoring information and a historical event log.

Advantages of your ASCO 230 Amps NEMA3R 480V Automatic Transfer Switch

All of the ASCO Series 300 Automatic Transfer Switches are designed for easy installation in a variety of environments. A compact design makes the device easy to fit into any location, and front-facing controls encourage quick inspections that don't require removing the device or components. The design also allows a flush wall mount without impeding cabling or connections.

Peace of mind that your facility will run smoothly, even when humans are not around to oversee power switching, is the top benefit of the ASCO 230 Amps NEMA3R 480V. A rugged build, smart programming and proven reliability let you rely on the switch to handle the job any time.
