OVERVIEW

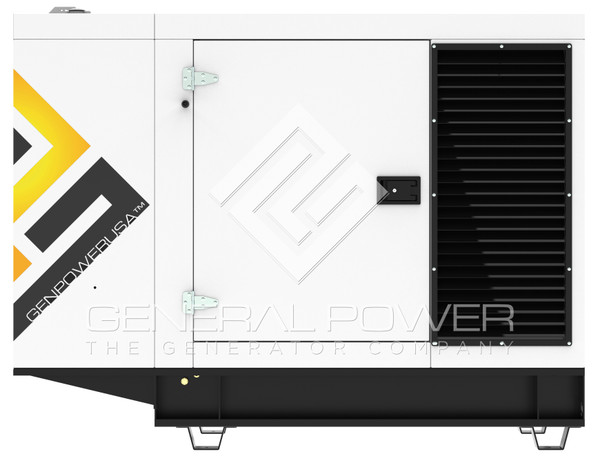

48KW 60KVA PERKINS POWERED DIESEL GENERATOR SET, BRAND NEW
MODEL:
GENPOWERUSA GP-P50-60T4F
QUALITY:
100% DESIGNED, ENGINEERED, ASSEMBLED AND TESTED IN USA
POWER RATINGS:
47KW (59KVA) STANDBY, 43KW (54KVA) PRIME, 3PHASES, 0.8PF, 60HZ, XXXV
48KW (60KVA) STANDBY, 43KW (54KVA) PRIME, 3PHASES, 0.8PF, 60HZ, 480/277V
EMISSIONS COMPLIANCE:
-U.S. EPA CARB TIER 4 FINAL compliant engine for Stationary Emergency, Stationary Prime, and Mobile Prime application as per current U.S. Environmental Protection Agency regulations
POWERED BY A HEAVY DUTY INDUSTRIAL ENGINE FOR MAXIMUM DURABILITY, EXCELLENT RELIABILITY AND WORLDWIDE SUPPORT:
-PERKINS 854F-E34TG1, 74HP, 1800RPM, Turbocharged
-Electronic isochronous governor
-Industrial-grade cooling system with fan guards and coolant drain extension with in-line valve
-DOC and SCR after-treatment system
-DEF tank capacity: Configurable
PREMIUM INDUSTRIAL-GRADE ALTERNATOR:
-LEROY SOMER TAL-042-H, 12 Leads, brushless, 100% Manufactured in Europe
-Full load rated with thermo-magnetic switch protection
-Skewed rotor and 2/3 pitch winding suppress triple harmonics and guarantee a superior voltage waveform
-Class H Insulation and Self-ventilated drip-proof design
-Electronic automatic voltage regulation
ADVANCED DIGITAL CONTROLLER:
-DEEP SEA ELECTRONICS DSE7320 MKII, Microprocessor based generator controller with dual-core main processor and extended memory. UL listed
-User-friendly, large, 4-line backlit LCD text display with support for up to 7 display languages
-Manual, Test and Auto Operation Mode with 2-wire remote start/stop capability
-250 event history log and
-50+ fully configurable alarms
-Automatic shutdowns: Under/Over voltage; Over load; Over current; Under/Over frequency; Under/Over speed; High coolant temperature; Low oil pressure; Low coolant level
VERSATILE CONFIGURATION IS FULLY PACKAGED AND READY FOR MOST STANDBY AND PRIME POWER APPLICATIONS:
-7ga, heavy duty steel skid with sloped-surface basin design for 110% containment of engine fluids
-Master cabinet with mechanically-compartmentalized housing for all control/power/breaker/connections components and vertical conduit access. Single-side, right-facing
-Main line breaker, 3 pole, set mounted, wired and maximum output rated for complete protection
-Heavy-duty AVM’s isolate engine/radiator/generator from frame to reduce vibration and noise
-Electrolyte-charged battery with rack, cables and rubber-booted connections
-Battery disconnect switch
-Oil drain extension with in-line valve
ENGINEERED TO THE HIGHEST STANDARDS AND FOR MAXIMUM PEACE OF MIND:
-QUALITY: Each unit prototype and individually factory load bank tested prior to shipping with pride and care in our factory in USA
-INTERNATIONAL WARRANTY: up to 2 years or 2000 hours comprehensive international warranty coverage, T&C’s apply
-PERFORMANCE: The generator accepts 100% rated load in one step as per NFPA110 and meets ISO8528-5 class G-2 for transient response
-DESIGNED TO INTERNATIONAL STANDARDS: ISO 8528, 3046, 7637; EN 61000-6-3, 61000-6-2, 55011; NEMA ICS 10, MG1, AB1; NEC 700, 701, 702; IEC 60034-1:2017
-NFPA COMPLIANT: NFPA 37 and NFPA Type 10 Level 1 capable (when equipped with the necessary accessories)
PHOTOS, TECHNICAL LITERATURE, STANDARD FEATURES AND ONLINE LIBRARY LINK:
Click here: http://bit.ly/GP-P50-60T4F
