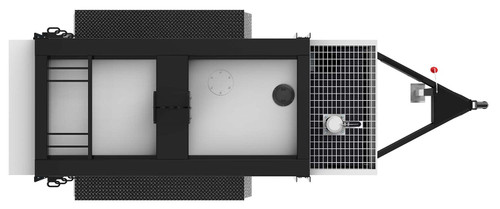

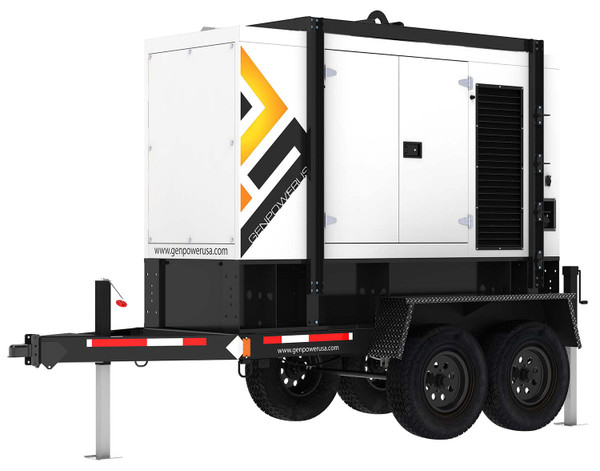

80 KW Trailer Generator, John Deere TPEM EPA Tier 3 Flex

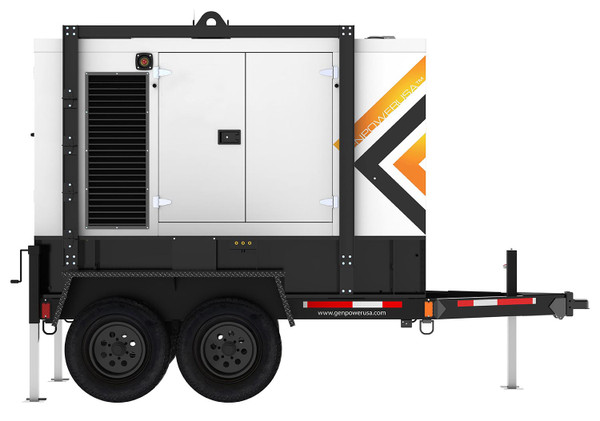

100 kVA John Deere generator for trailer and mobile power

GPR-J80-60T3F-2SA

BRAND NEW, 12GA MARINE-GRADE ALUMINUM SUPER SILENT ENCLOSURE

100% DESIGNED, ENGINEERED, ASSEMBLED AND TESTED IN USA

Available in both trailer and non-trailer versions based upon application requirements and customer needs

80 KW GENERATOR POWER RATINGS:

>3PHASE 480/277V: 80KW (100KVA) 120A STANDBY, 75KW (94KVA) 113A PRIME, 0.8PF, 60HZ

>3PHASE 208/120V: 80KW (100KVA) 278A STANDBY, 74KW (93KVA) 257A PRIME, 0.8PF, 60HZ

>1PHASE 240/120V: 80KW (80KVA) 333A STANDBY, 73KW (73KVA) 304A PRIME, 1.0 PF, 60HZ

POWERED BY PREMIUM HEAVY DUTY INDUSTRIAL COMPONENTS FOR MAXIMUM DURABILITY, EXCELLENT RELIABILITY AND WORLDWIDE SUPPORT:

>DIESEL ENGINE: JOHN DEERE 4045HF285-3126, Turbocharged, heavy duty diesel engine, 1800rpm, Liquid cooled, Electronic governor, U.S. EPA / TIER 3 FLEX compliant

>EMISSIONS COMPLIANCE: U.S. EPA / TPEM TIER 3 FLEX (Flexibility Provisions compliant engine) as per current U.S. Environmental Protection Agency regulations (TPEM 40 CFR Part §1039.625)

>AC ALTERNATOR: LEROY SOMER TAL-044-H, 12 Leads brushless alternator. IP23 drip-proof protection, Insulation class H. Electronic Automatic voltage regulation

>ALTERNATOR EXCITATION: LEROY SOMER AREP, PMG-grade auxiliary excitation and AVR upgrade for 270% (270IN:5s) short-circuit reactance capability

>ADVANCED DIGITAL CONTROLLER: DEEPSEA DSE7320 MKII digital auto-start/stop control panel. All genset parameter, alarms and control functions. RS232 and RS485. UL LISTED

>CIRCUIT BREAKER: ABB 400AMP, Manual Main line circuit breaker, 3 poles, set mounted, wired and maximum output rated for complete generator protection

>DIGITAL VOLTAGE REGULATION: DEEPSEA DSEA109 Advanced Digital Voltage Regulator upgrade with optional motor soft-start ramp up capability

CORROSION-PROOF MARINE GRADE ALUMINUM ENCLOSURE FOR LIFETIME LONGEVITY AND EXCELLENT SOUND PERFORMANCE:

>35DBA CRITICAL SILENCER: MIRATECH COWL TXS, CRITICAL class spiral silencer for 28 to 35dBA sound reduction. Aluminized steel construction

>ENCLOSURE CONSTRUCTION: AL5052, 12GA, Marine-Grade ALUMINUM alloy panels enclosure construction with stainless steel hardware

>ENCLOSURE TYPE: IP56 rated Weather proof, sound attenuated enclosure. 12-gauge aluminum for maximum corrosion resistance

>SOUND ATTENUATING MATERIAL: Up to 50 mm (2 in) of Polydamp® Acoustical Foam with Tuffylm® urethane lining, designed to give maximum sound absorption. The foam comes with 1.85 density (lb/ft3). Flame resistant to UL94-HF1 standard.

80 KW TRAILER GENERATOR FEATURES FOR COMPLETE MOBILITY, TOTAL VERSATILITY AND MAXIMUM ROI:

>TRUE DOUBLE-WALLED FUEL TANK: 175Gal (662L), double walled, integral metallic fuel tank with electronic fuel level sender for control panel readings, alarms and shutdowns. TRUE Double-walled construction with 110% containment capability and leak detection switch

>RUNTIME AUTONOMY (DIESEL): 35 Hours @ 75% load, 29 Hours @ 100% load

>ENVIRONMENTAL CONTAINMENT: 110% rated containment of oil, coolant and fuel. Segmented containment design allows for separate containment of oil-coolant, fuel and water

>VOLTAGE SELECTOR SWITCH: SALZER 3-position manual voltage selector switch for effortless switching between 1PHASE-240/120V, 3PHASE 208/120V and 3PHASE 480/277V connections

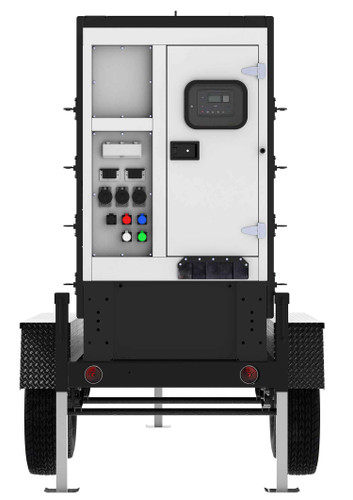

>POWER DISTRIBUTION PANEL: Enclosure-surface mounted, rental-type, full distribution panel includes: 2x 20AMP GFCI duplex receptacles, 3x 50AMP twist lock receptacles, 1x FULL SET color coded camlocks, 1x FULL SET bus bars with 500mcm mechanical lugs

>EXTERNAL SHORE POWER CONNECTOR: Externally mounted quick-connector provide convenient access to power the battery charger and coolant heater

>EXTERNAL COMMUNICATION CONNECTORS: 1x set of remote start/stop terminals and 1x surface mounted USB-B type connector for effortless control software configuration

>EXTERNAL FUEL FILL: Externally mounted lockable fuel fill installed on the enclosure

>EXTERNAL CONNECTION PORTS: 4x externally mounted quick access ports installed on the enclosure for coolant drain; oil drain; fuel supply; and fuel return

>DOUBLE CRITICAL-ACCESS EMERGENCY STOP BUTTONS: 1x externally mounted recessed emergency-stop button installed on the enclosure and 1x internally mounted button next the control cabinet

>BATTERY DISCONNECT SWITCH: Manually operated battery quick disconnect switch

>LED LIGHTING: 300 lumens, 0.3A, 12VDC, waterproof white LED strip in aluminum housing installed in the mechanical lugs compartment

>SHUNT TRIP: 12VDC shunt trip

>SYSTEM-WIDE DIFFERENTIAL PROTECTION ON ALL OUTPUTS: LOVATO 31RM48 Type A earth leakage relay with 1 operation threshold, configurable automatic or manual resetting and LED indicators

>ACCIDENTAL SWITCHOVER PROTECTION: Automatic breaker shunt-trip in the case of accidental operation of the voltage selector switch while the engine is running

BRAND NEW AND FULLY PACKAGED RENTAL GENERATOR INCLUDES STANDARD:

>AUTO start/stop control feature included for remote start via 2-Wire dry contact

>12 lead re-connectable Alternator, brushless, single bearing, IP23 drip proof, Insulation class H/H, +/- 1.0% regulation

>Microprocessor based control panel

>12V charging alternator and 12V Electric starter motor

>12V charged DC starting battery with electrolyte and cables

>Dry type Air filter, Fuel filter and Oil filter spin-on elements installed

>Mechanically welded chassis with anti-vibration isolators

>Each unit prototype and individually factory load bank tested prior to shipping in our Quality Controlled facilities in USA

>User guide, commissioning and maintenance manual. Wiring diagrams included. (English)

>Compliant with ISO3046, ISO8528, BS4999, BS5514, BS5000PT99, AS1359, IEC34, UTE5100, VDE0530

ENGINEERED FOR PRIME POWER AND PEACE OF MIND:

>QUALITY: 100% designed, engineered, assembled and individually load bank tested with pride and care in our factory in USA

>INTERNATIONAL WARRANTY: Industry-leading Comprehensive Parts AND Labor coverage for up to 1 YEAR / 2000 HOURS Prime Service Duty

>SOUND LEVELS: Super silent enclosure designed to meet and exceed North American Level 2 and European 2000/14EC Low sound level directives

GENERATOR DIMENSIONS:

>SKID MOUNTED: Please refer to exact-configuration drawings

>TRAILER MOUNTED: Please refer to exact-configuration drawings
