700 KW MTU Diesel Generator 875 KVA, Three phase, Enclosed type, EPA compliant, X700UC2-IV, Brand New, 2 Years Warranty

• MTU 12V2000G45E, Turbocharged Heavy duty diesel engine, 4 stroke, 1800RPM, Liquid cooled, Electronic governor, U.S. EPA / CARB TIER 2
• LEROY SOMER LSA491M6, brushless Alternator. IP23 drip-proof protection, Insulation class H. Electronic Automatic voltage regulation.
• SCHNEIDER, Main line circuit breaker, 3 pole, set mounted, wired and maximum output rated for complete generator protection
• TELYS2, ADVANCED / 06x MULTILINGUAL, Digital auto-start/stop control panel with built-in Remote monitoring/control capability. All genset parameter, alarms and control functions. RS232 and RS485
• DAY TANK, Incorporated metallic fuel tank with electronic level sensing, single wall. Daily autonomy: M427: 930L (245Gal), ISO20: 500L (132Gal)

• AL11 LEROY SOMER AREP, (P.M.G. grade) Alternator’s Auxiliary excitation system for enhanced 300% short circuit reactance and motor starting capabilities 300% (3 IN): 10sec
• R450 LEROY SOMER Automatic Voltage Regulator upgrade featuring Excitation ceiling setting, Overload protection and Underspeed protection by U/f and LAM function. +/-0.5% voltage regulation

BRAND NEW AND FULLY PACKAGED DIESEL GENERATOR SET INCLUDES STANDARD:

• IP56 rated Weather proof / Super Silent enclosure. 12 gauge electro zinc coated steel for maximum corrosion resistance
• AUTO start/stop control feature included for remote start via 2-Wire dry contact
• U.S. EPA / CARB TIER 2 compliant engine for Stationary application as per current U.S. Environmental Protection Agency regulations
• Engine Governor and Regulation: Electronic Isochronous for extremely accurate +/-0.5% speed regulation
• 12 lead reconnectable Alternator, brushless, single bearing, IP23 drip proof protection, Insulation class H/H, AVR R450, +/-0.5%
• Radiator rated for T°of 48°C [118°F] max with mechanical fan
• Microprocessor based control panel
• 24V charging alternator and 24V electrical starter motor
• 24V charged DC starting battery with electrolyte and cables
• 29dB(A) Critical class silencer installed inside the enclosure
• Dry type Air filter, Fuel filter and Oil filter spin-on elements installed
• Mechanically welded chassis with anti-vibration isolators
• Each unit prototype and individually factory load bank tested prior to shipping in ISO9001:2008 Quality Controlled facilities
• User guide, commissioning and maintenance manual. Wiring diagrams included. (English, Spanish or French)
• The generator accepts 100% rated load in one step as per NFPA110 and meets ISO8528-5 class G-3 for transient response
• Many options available: Aluminum enclosures, UL142 listed fuel tanks, UL1008 automatic transfer switches, Remote annunciators and More
• Compliant with ISO3046, ISO8528, BS4999, BS5514, BS5000PT99, AS1359, IEC34, UTE5100, VDE0530 and ISO9001:2008

• 12 gauge electro-zinc coated steel for maximum corrosion resistance (Phosphatizing degreasing, Non-chromic passivation, Osmosis purified rinsing and High durability polyester resin thermosetting powder paint)
• 29dB(A) Internal-mounted critical silencer and flexible exhaust connector offering maximum component life and operator safety
• Fade-, scratch-, and corrosion-resistant. Automotive-grade textured finish resulting in advanced corrosion and abrasion protection as well as enhanced edge coverage and color retention
• Up to 51mm (2in) Acoustic insulation with hydrocarbon sealing film that meets UL 94 HF1 / FMVSS 302 flammability classification and repels moisture absorption
• Interchangeable modular panel construction. Allows complete serviceability or replacement without compromising enclosure design
• Service access. Multi-personnel doors for easy access to generator set control and servicing of the fuel fill, fuel gauge, oil fill, and battery
• Cooling air discharge. Weather protective design featuring a vertical air discharge outlet grille. Redirects cooling air up and above enclosure to reduce ambient noise
• Cooling/combustion air intake with a horizontal air inlet. Sized for maximum cooling airflow
• Heavy duty Polyamide plastic hinges, Dichromate galvanized bolting and Stainless steel rivets for lifetime longevity
• 100% modular design, complete enclosure can be removed or installed in under 30 minutes, no disassembly required
• Meets and exceeds NFX41002 Salt spray test, NFT30049 UV Performance test, NFT30038 Paint adhesion test and 2000/14EC Low sound directives

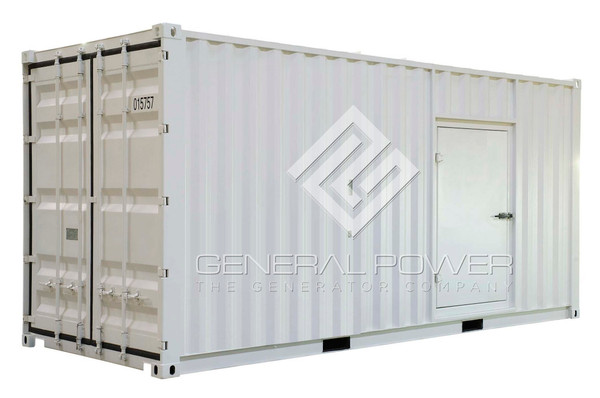

20’ ISO20, IP56 RATED WEATHERPROOF / SILENT CONTAINER FEATURES:

• 20 Feet Standardized ISO20 construction with International CSC (Container Safety Convention) plate/certification for sea worthiness
• 12 gauge electro-zinc powder coated steel for maximum corrosion resistance (Phosphatizing degreasing, Non-chromic passivation, Osmosis purified rinsing and High durability polyester resin thermosetting powder paint)
• 30dB(A) Internal-mounted critical silencer and flexible exhaust connector offering maximum component life and operator safety
• Fade-, scratch-, and corrosion-resistant. Automotive-grade textured finish resulting in advanced corrosion and abrasion protection as well as enhanced edge coverage and color retention
• Up to 51mm (2in) Acoustic insulation with hydrocarbon sealing film that meets FMVSS 302 flammability classification and repels moisture absorption
• Service access. Multi-personnel doors for easy access to generator set controller, breaker and service points
• Cooling air discharge. Weather protective design featuring a vertical air discharge outlet grille. Redirects cooling air up and above enclosure to reduce ambient noise
• Cooling/combustion air intake with a horizontal air inlet. Sized for maximum cooling airflow
• Meets and exceeds NFX41002 Salt spray test, NFT30049 UV Performance test, NFT30038 Paint adhesion test and 2000/14EC Low sound directives

GENERATOR POWER RATINGS, VOLTAGES, DIMENSIONS AND WEIGHT:
