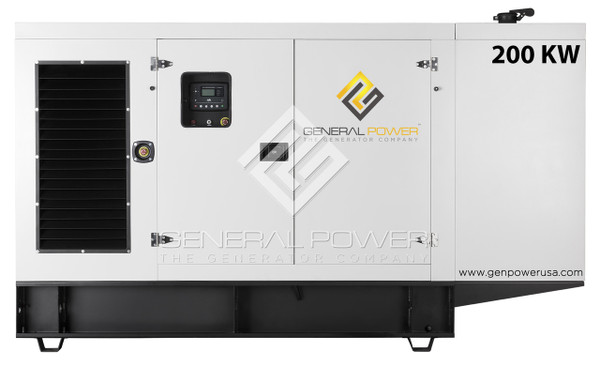

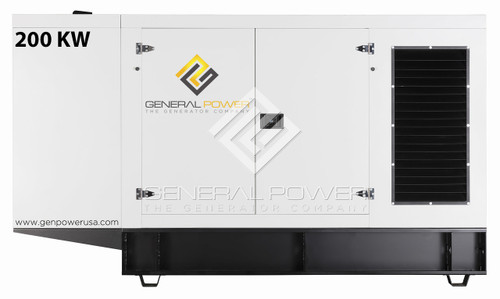

The John Deere 200 KW 250 kVA Generator combines high performance, reliability and versatility. It features a heavy duty diesel, 4 stroke, 1800 rpm electronic engine for rugged reliability. This industrial generator is U.S. EPA Tier 3 FLEX (Flexibility Allowance Provisions) compliant for stationary standby or mobile prime application as per TPEM. It is designed to function dependably in many applications.
200 KW John Deere Diesel Generator Standard Features and Capabilities:
|
Engine
|
- John Deere 6068HF485 engine
- 1800 rpm
- Turbocharged and aftercooled (air-to-air)
- U.S. EPA Tier 3 FLEX (Flexibility Allowance Provisions) compliant engine for stationary standby or mobile prime application as per TPEM
|
|
Alternator
|
- Leroy Somer TAL-046-C Alternator
- 3 phase
- 4 pole
- Direct / single bearing
- IP23 protection
- Insulation class H
- Main line circuit breaker, maximum output rated for complete protection
- 12V charging alternator and 12V DC electric starter motor
- 12V charged DC starting battery with electrolyte and cables
|
|
Enclosure
|
- Mechanically welded chassis with vibration isolators
- Maximum corrosion resistance with 12 gauge electro-zinc powder coated steel (phosphatizing degreasing, non-chromic passivation, osmosis purified rinsing and high-durability polyester resin thermosetting powder paint)
- An included 29dB(A) internal-mounted critical silencer and flexible exhaust connector offers maximum component life and operator safety
- Fade-, scratch-, and corrosion-resistant
- Features automotive-grade textured finish, resulting in advanced corrosion and abrasion protection. Also offers enhanced edge coverage and color retention
- Up to 51mm (2 in) Acoustic insulation with hydrocarbon sealing film that meets FMVSS 302 flammability classification and repels moisture absorption
- Complete serviceability or replacement without compromising enclosure design is allowed with interchangeable modular panel construction
- Multi-personnel doors for easy access to generator set controller, breaker and service points
- Externally mounted emergency stop button, single point lifting hook and tamper-proof “securit” viewing control window
- Cooling air discharge
- Weather protective design featuring a vertical air discharge outlet grille
- Ambient noise is reduced with a redirection of cooling air up and above enclosure
- Cooling/combustion air intake with a horizontal air inlet
- Sized for maximum cooling airflow
- Lifetime longevity with heavy duty polyamide plastic hinges, dichromate galvanized bolting and stainless steel rivets
- Meets and exceeds:
- NFX41002 Salt spray test
- NFT30049 UV Performance test
- NFT30038 Paint adhesion test
- 2000/14EC Low sound directives
|
|
Fuel Tank and Features
|
- 100 gallon integral tank
- 10 hours @ 75% prime load
- 7 hours @ 100% prime load
- Incorporated metallic fuel tank for day use
- Electronic fuel level sender
|
|
Control Panel and Features
|
- Deepsea DSE7320 Controller
- Digital auto-start/stop control panel
- 132x64 LCD display
- Fully configurable via a free downloadable PC software
- 250 events log including date and time make fault finding effortless
- Remote monitoring and control via Ethernet/RS485 and SMS messaging via GSM/SIM card options available
- Oil pressure, coolant temperature and low pressure alarm/shutdown
- Oil temp, hours, battery charge, frequency, KW, kVA and PF display
- Voltage under/over protection
- Amp over current protection
- CE and UL compliant
|
Additional Features and Capabilities of the 200 KW John Deere Diesel Generator Include:
- Auto start control feature included for interoperation with ATS/AMF
- Dry type air filter, fuel filter and oil filter elements installed
- Individually factory load bank tested
- The generator accepts 100% rated load in one step as per NFPA110 and meets ISO8528-5 class G-3 for transient response
- Compliant with:
- ISO3046
- ISO8528
- BS4999
- BS5514
- BS5000PT99
- AS1359
- IEC34
- UTE5100
- VDE0530
- ISO9001:2000
Compatible Accessories and Options for the 200 KW John Deere Diesel Generator Include:
Configure your generator set for your unique power needs with compatible accessories, including:
- Weatherproof, sound attenuated enclosures of steel or aluminum
- UL142 listed, double wall fuel tanks from 50 to 10,000 gallons
- UL1008 listed, automatic transfer switches from 50 to 3000 Amp
- D.O.T. compliant heavy duty road trailers available, from 3,000 to 30,000 lbs. Available accessories include automatic battery chargers, engine preheaters, remote annunciators and more
