CUMMINS 150 KW Generator 188 KVA, Three Phase, Brand New
GP-C150-60T3 Cummins Generator, Open type, EPA compliant

STATIONARY: 150KW (188KVA) STANDBY, 3 PHASES, 0.8PF, 60HZ, 1800RPM, 208/120V RECONNECTABLE UP TO 480/277V

• QUALITY: 100% designed, manufactured and individually load bank tested in state-of-the-art IS09001 facilities
• INTERNATIONAL WARRANTY: Comprehensive Parts coverage for up to 1 YEARS or 1000 HOURS
• SOUND LEVELS: Super silent enclosure designed to meet and exceed North American Level 2 and European 2000/14EC Low sound level directives

POWERED BY PREMIUM HEAVY DUTY INDUSTRIAL COMPONENTS FOR MAXIMUM DURABILITY, EXCELLENT RELIABILITY AND WORLDWIDE SUPPORT:

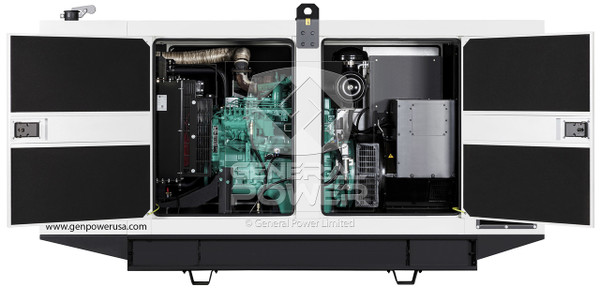

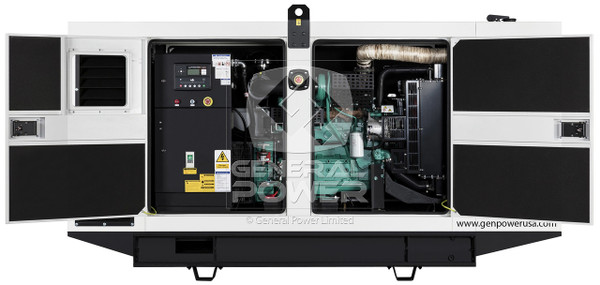

• CUMMINS QSB7-G3, Turbocharged, heavy duty diesel engine, 4 stroke, 1800rpm, Liquid cooled, Electronic Governor, U.S. EPA TIER 3, Made in USA
• STAMFORD CUMMINS UCI274F, 12 Leads brushless alternator. IP23 drip-proof protection, Insulation class H. Electronic Automatic voltage regulation, UL1446 LISTED
• DEEPSEA DSE7320, ADVANCED Digital auto-start/stop control panel. All genset parameter, alarms and control functions. RS232 and RS485
• MCCB, Main line circuit breaker, 3 poles, set mounted, wired and maximum output rated for complete generator protection
• DAY TANK, Incorporated metallic fuel tank with electronic fuel level sender, single wall. High capacity: 350L (92Gal)

BRAND NEW AND FULLY PACKAGED DIESEL GENERATOR SET INCLUDES STANDARD:

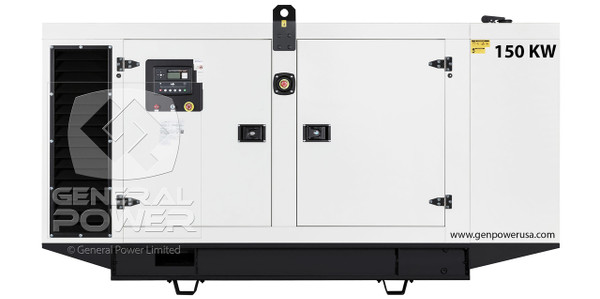

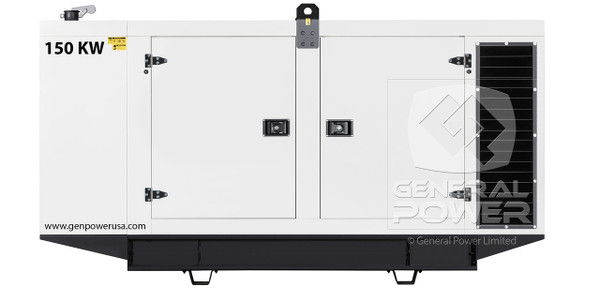

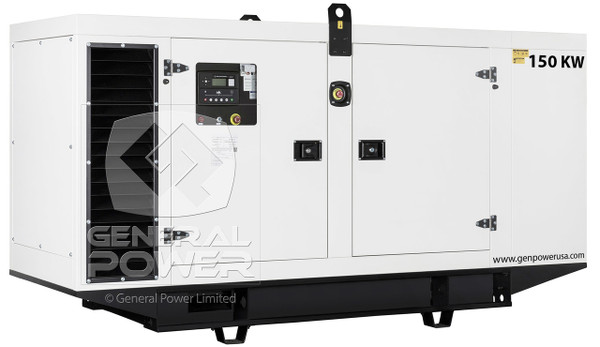

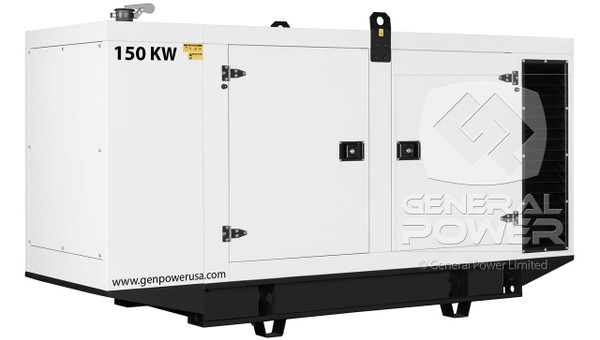

• IP56 rated Weather proof, sound attenuated enclosure. 12 gauge electro zinc coated steel for maximum corrosion resistance
• AUTO start/stop control feature included for remote start via 2-Wire dry contact
• U.S. EPA TIER 3 compliant engine for Stationary Standby application as per current U.S. Environmental Protection Agency regulations
• Engine Governor and Regulation: Electronic Isochronous for extremely accurate +/-5% speed regulation
• 12 lead re-connectable Alternator, brushless, single bearing, IP23 drip proof, Insulation class H/H, AVR SX460 +/- 1.0% regulation
• Radiator for wiring Temperature of 50°C [122°F] max with mechanical fan
• Microprocessor based control panel
• 24V charging alternator and 24V Electric starter motor
• 24V charged DC starting battery with electrolyte and cables
• 29dB (A) Critical class silencer installed inside the enclosure
• Dry type Air filter, Fuel filter and Oil filter spin-on elements installed
• Mechanically welded chassis with anti-vibration isolators and forklift pockets for safer handling
• Each unit prototype and individually factory load bank tested prior to shipping in lSO9001:2008 Quality Controlled facilities
• User guide, commissioning and maintenance manual. Wiring diagrams included. (English)
• Compliant with ISO3046, ISO8528, BS4999, BS5514, BS5000PT99, AS1359, IEC34, UTE5100, VDE0530 and ISO9001:2008
