OVERVIEW

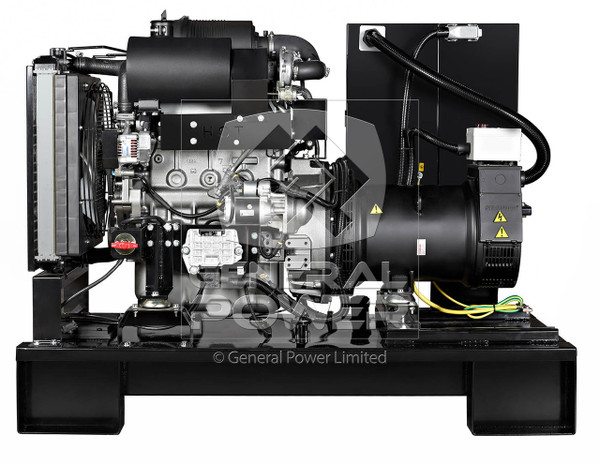

40 KW HIPOWER Diesel Generator 50 KVA, Three phase, Open type, EPA compliant, HYW-45-T6, Brand New, 2 Years Warranty
- YANMAR 4TNV98T, Turbocharged Heavy duty diesel engine, 4 stroke, 4 Cylinders, 1800RPM, Liquid cooled, Electronic governor, U.S. EPA / CARB Tier i4 compliant
- STAMFORD CUMMINS UCI224D, 12 Leads brushless alternator. IP23 drip-proof protection, Insulation class H. Electronic Automatic voltage regulation
- SCHNEIDER, Main line circuit breaker, 3pole, set mounted, wired and maximum output rated for complete generator protection. CSA and UL LISTED
- HIPOWER CEM7, Digital auto-start/stop control panel. All genset parameter, alarms and control functions. CE listed
- HIPOWER DAY TANK, Incorporated metallic fuel tank with electronic level sensing, single wall. Daily autonomy: 100L (26 gal) (10 hours runtime autonomy @ 75% load)
BRAND NEW AND FULLY PACKAGED DIESEL GENERATOR SET INCLUDES STANDARD:
- Open skid type
- AUTO start/stop control feature included for remote start via 2-Wire dry contact
- U.S. EPA / CARB TIER i4 compliant engine as per current U.S. Environmental Protection Agency regulations
- Engine Governor and Regulation: Electronic Isochronous for extremely accurate +/-0.5% speed regulation
- 12 lead reconnectable Alternator, brushless, single bearing, IP23 drip proof protection, Insulation class H/H, AVR, AS480, +/- 1.0% regulation
- Radiator rated for T° of 50°C [122°F] max with mechanical fan
- Microprocessor based control panel
- 12V charging alternator and 12V electrical starter motor
- 12V charged DC starting battery with electrolyte and cables
- 12V charged DC starting battery quick disconnect switch
- 15dB(A) Industrial class silencer mounted and installed on the engine
- Cartridge type Heavy duty 2-stage Dry type Air filter, Fuel filter and Oil filter spin-on elements installed
- Mechanical Oil elevation pump for effortless maintenance
- Mechanically welded chassis with anti-vibration isolators
- Each unit prototype and individually factory load bank tested prior to shipping in ISO9001:2008 Quality Controlled facilities
- User guide, commissioning and maintenance manual. Wiring diagrams included. (English, Spanish or French)
- The generator accepts 100% rated load in one step as per NFPA110 and meets ISO8528-5 class G-3 for transient response
- Many options available: Aluminum enclosures, UL142 listed fuel tanks, UL1008 automatic transfer switches, Remote annunciators and More
- Compliant with ISO3046, ISO8528, BS4999, BS5514, BS5000PT99, AS1359, IEC34, UTE5100, VDE0530 and ISO9001:2008
GENERATOR POWER RATINGS, DIMENSIONS AND WEIGHT:
- STANDARD POWER RATINGS: 44 KW (55 KVA) STANDBY, 40 KW (50 KVA) PRIME, 60 HZ, 1800 RPM, 3 PHASE, 0.8 PF
- STANDARD VOLTAGES AVAILABLE: 208/120V, 220/110V, 220/127V, 230/115V, 240/120V, 240/139V, 416/240V, 440/254V, 460/265V, 480/277V
- DIMENSIONS OPEN TYPE: 1653mm [65.07in] x 810mm [31.88in] x 1254mm [49.37in], 730kg [1609 lbs] Net
