OVERVIEW

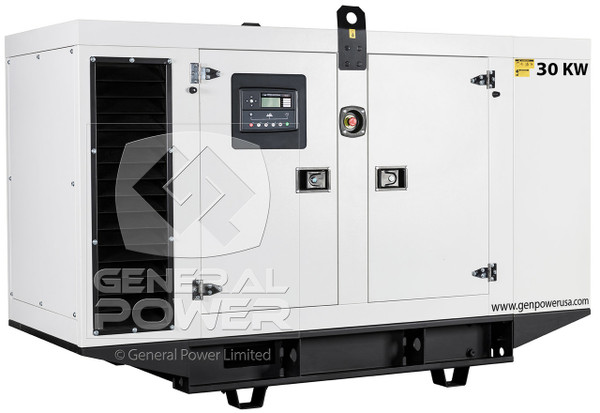

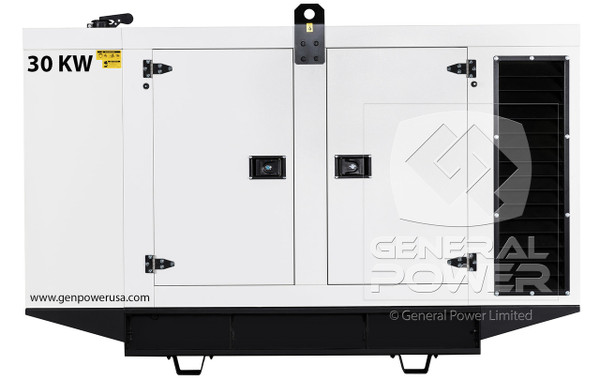

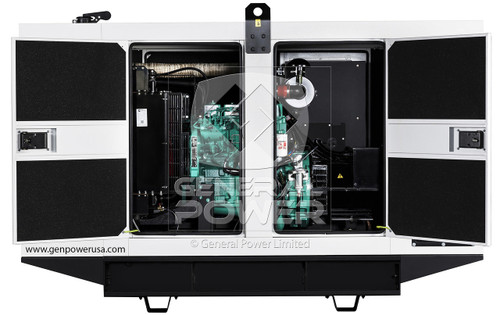

CUMMINS 28 KW Generator 35 KVA, Three Phase, Brand New
GP-C30-60SA Cummins Generator, Open type, Export only
STATIONARY: 28KW (35KVA) STANDBY, 25KW (31KVA) PRIME, 3 PHASES, 0.8PF, 60HZ, 1800RPM, 208/120V RECONNECTABLE UP TO 480/277V
- QUALITY: 100% designed, manufactured and individually load bank tested in state-of-the-art IS09001 facilities
- INTERNATIONAL WARRANTY: Comprehensive Parts coverage for up to 1 YEARS or 1000 HOURS
- SOUND LEVELS: Super silent enclosure designed to meet and exceed North American Level 2 and European 2000/14EC Low sound level directives
POWERED BY PREMIUM HEAVY DUTY INDUSTRIAL COMPONENTS FOR MAXIMUM DURABILITY, EXCELLENT RELIABILITY AND WORLDWIDE SUPPORT:
- CUMMINS 4B3.9G2, Naturally Aspirated, heavy duty diesel engine, 4 stroke, 1800rpm, Liquid cooled, Electronic Governor
- STAMFORD CUMMINS PI144F, 12 Leads brushless alternator. IP23 drip-proof protection, Insulation class H. Electronic Automatic voltage regulation, UL1446 LISTED
- DEEPSEA DSE7320, ADVANCED Digital auto-start/stop control panel. All genset parameter, alarms and control functions. RS232 and RS485
- MCCB, Main line circuit breaker, 3 poles, set mounted, wired and maximum output rated for complete generator protection
- DAY TANK, Incorporated metallic fuel tank with electronic fuel level sender, single wall. High capacity: 120L (32Gal)
BRAND NEW AND FULLY PACKAGED DIESEL GENERATOR SET INCLUDES STANDARD:
- IP56 rated Weather proof, sound attenuated enclosure. 12 gauge electro zinc coated steel for maximum corrosion resistance
- AUTO start/stop control feature included for remote start via 2-Wire dry contact
- Engine Governor and Regulation: Electronic Isochronous for extremely accurate +/-5% speed regulation
- 12 lead re-connectable Alternator, brushless, single bearing, IP23 drip proof, Insulation class H/H, AVR AS480 +/- 1.0% regulation
- Radiator for wiring Temperature of 50°C [122°F] max with mechanical fan
- Microprocessor based control panel
- 24V charging alternator and 24V Electric starter motor
- 24V charged DC starting battery with electrolyte and cables
- 29dB (A) Critical class silencer installed inside the enclosure
- Dry type Air filter, Fuel filter and Oil filter spin-on elements installed
- Mechanically welded chassis with anti-vibration isolators and forklift pockets for safer handling
- Each unit prototype and individually factory load bank tested prior to shipping in lSO9001:2008 Quality Controlled facilities
- User guide, commissioning and maintenance manual. Wiring diagrams included. (English)
- Compliant with ISO3046, ISO8528, BS4999, BS5514, BS5000PT99, AS1359, IEC34, UTE5100, VDE0530 and ISO9001:2008
