OVERVIEW

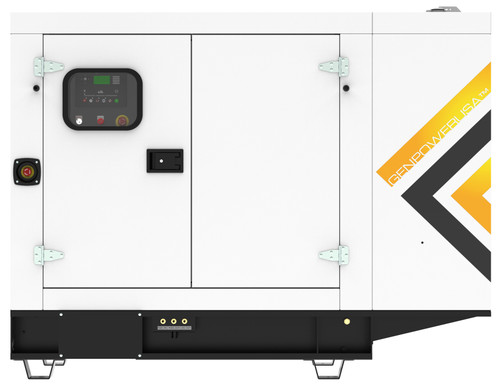

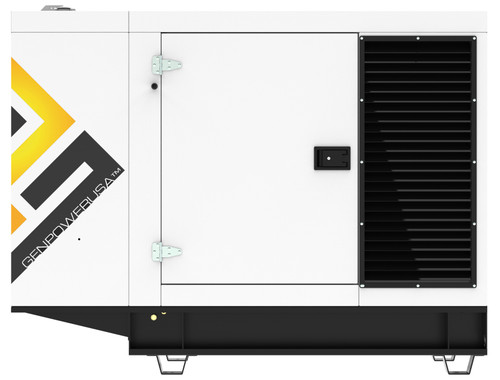

25KW GENERATOR 25KVA, 25,000 WATT JOHN DEERE DIESEL GENERATOR, BRAND NEW
MODEL:
GENPOWERUSA GP-J25-60T4i-1PHASE
QUALITY:
100% DESIGNED, ENGINEERED, ASSEMBLED AND TESTED IN USA
25KW DIESEL GENERATOR POWER RATINGS:
25KW (25KVA) STANDBY, 22KW (22KVA) PRIME, 1PHASE, 1.0PF, 60HZ, 240/120V
EMISSIONS COMPLIANCE:
-U.S. EPA INTERIM 4 compliant engine for Stationary Emergency application as per current U.S. Environmental Protection Agency regulations
POWERED BY A HEAVY DUTY INDUSTRIAL ENGINE FOR MAXIMUM DURABILITY, EXCELLENT RELIABILITY AND WORLDWIDE SUPPORT:
-JOHN DEERE 3029TFU89-3047, 47HP, 1800RPM
-Mechanical governor
-Industrial-grade cooling system with fan guards and coolant drain extension with in-line valve
PREMIUM INDUSTRIAL-GRADE ALTERNATOR:
-LEROY SOMER TAL-042-D-M1, 4 Leads, brushless, 100% Manufactured in Europe
-Full load rated with thermo-magnetic switch protection
-Skewed rotor and 2/3 pitch winding suppress triple harmonics and guarantee a superior voltage waveform
-Class H Insulation and Self-ventilated drip-proof design
-Electronic automatic voltage regulation
ADVANCED DIGITAL CONTROLLER:
-DEEP SEA ELECTRONICS DSE7320 MKII, Microprocessor based generator controller with dual-core main processor and extended memory. UL listed
-User-friendly, large, 4-line backlit LCD text display with support for up to 7 display languages
-Manual, Test and Auto Operation Mode with 2-wire remote start/stop capability
-250 event history log and 50+ fully configurable alarms
-Automatic shutdowns: Under/Over voltage; Over load; Over current; Under/Over frequency; Under/Over speed; High coolant temperature; Low oil pressure; Low coolant level

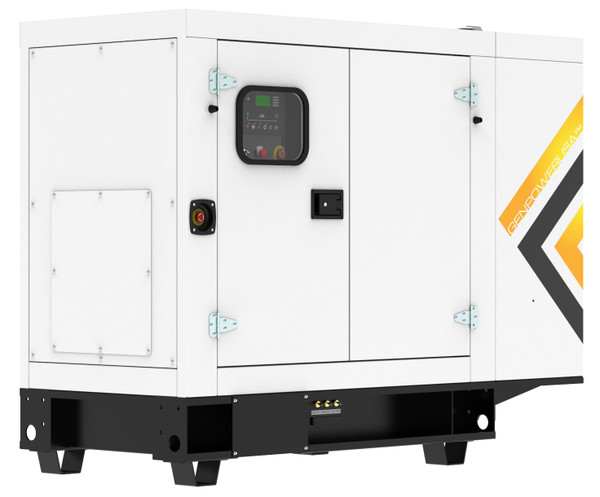

SUPER-SILENT, CORROSION-RESISTANT, STEEL ENCLOSURE FOR MAXIMUM LONGEVITY AND EXCELLENT SOUND ATTENUATION:
-35DBA CRITICAL SILENCER: MIRATECH COWL TXS spiral silencer in aluminized steel construction for up to 35dBA sound reduction
-CONSTRUCTION: 12GA, steel panels with stainless steel hardware for lifetime corrosion resistance
-TYPE: IP56 / outdoor rated / Weather proof / super silent design compliant to ISO12944 1000+ hour salt-spray test
-FINISH: UV and fade-resistant, high temperature cured, RAL9003-white polyester powder paint
-VERTICAL DISCHARGE PLENUM: Weather-resistant vertical air discharge outlet redirects cooling air up and above enclosure to reduce ambient noise
-SOUND ATTENUATING MATERIAL: Up to 51mm (2in) Acoustic insulation with hydrocarbon sealing film for maximum sound absorption, flame resistance and moisture repellence
-110% ACCESS: XXL maintenance-friendly access featuring a beam-less design for industry-leading access to the engine and radiator from both sides
-Also available in marine-grade aluminum enclosure
VERSATILE CONFIGURATION IS FULLY PACKAGED AND READY FOR MOST STANDBY AND PRIME POWER APPLICATIONS:
-7ga, heavy duty steel skid with sloped-surface basin design for 110% containment of engine fluids
-Master cabinet with mechanically-compartmentalized housing for all control/power/breaker/connections components and vertical conduit access. Single-side, right-facing
-Main line breaker, 3 pole, set mounted, wired and maximum output rated for complete protection
-Heavy-duty AVM’s isolate engine/radiator/generator from frame to reduce vibration and noise
-Electrolyte-charged battery with rack, cables and rubber-booted connections
-Battery disconnect switch
-Oil drain extension with in-line valve
ENGINEERED TO THE HIGHEST STANDARDS AND FOR MAXIMUM PEACE OF MIND:
-QUALITY: Each unit prototype and individually factory load bank tested prior to shipping with pride and care in our factory in USA
-INTERNATIONAL WARRANTY: up to 2 years or 2000 hours comprehensive international warranty coverage, T&C’s apply
-PERFORMANCE: The generator accepts 100% rated load in one step as per NFPA110 and meets ISO8528-5 class G-2 for transient response
-DESIGNED TO INTERNATIONAL STANDARDS: ISO 8528, 3046, 7637; EN 61000-6-3, 61000-6-2, 55011; NEMA ICS 10, MG1, AB1; NEC 700, 701, 702; IEC 60034-1:2017
-NFPA COMPLIANT: NFPA 37 and NFPA Type 10 Level 1 capable (when equipped with the necessary accessories)
FAQs:
How much does a 25 kw generator cost?
On average, 25 kW generators cost on average about $8,250 but can be more or less expensive depending on how you customize them. These generators work great as a backup source of power for homes larger than 4,000 square feet.
How many amps is a 25 kw generator?
The amount of amps your 25 kW generator produces depends on many different factors. However, in an ideal situation where your 25 kW generator is performing at peak performance and using an input voltage of 240 volts, your 25 kW generator should be producing around 100 amps.
How big is a 25 KW generator?
25 kW generators come in both a home standby configuration and a towable configuration. 25 kW home standby generators weigh around 950 pounds with approximate dimensions of about 60 inches long, 30 inches wide, and 40 inches tall. Towable 25 kW generators, on the other hand, weigh about 3,000 pounds with the trailer and have approximate dimensions of 130 inches long, 60 inches wide, and 70 inches tall.
