OVERVIEW
Deep Sea DSE9473 Battery Charger
Deep Sea Electronics is one of the world’s primary power supply and controllers brands. Located in Britain, they produce a wide range of intelligent battery chargers and place exceptional performance and efficiency above all else. Not sure? Just ask a couple of the 150 countries they ship to!

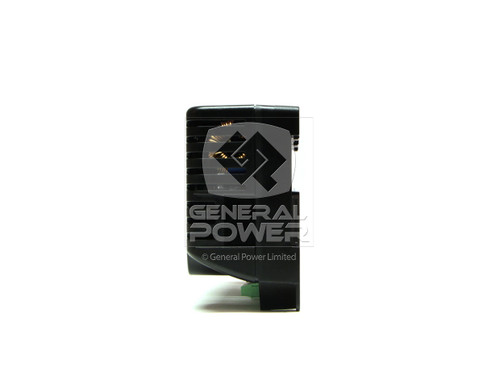

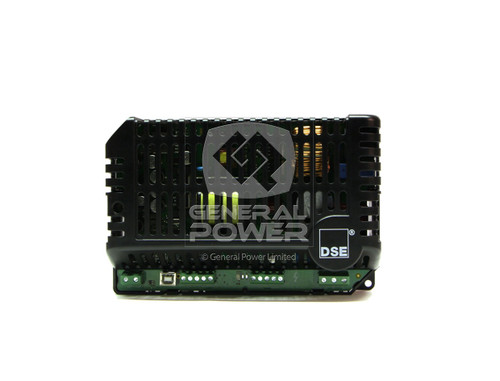

DEEPSEA 9473-01 Generator Battery Charger
The DSE9473-01 intelligent 15 amp, 24 volt battery charger is designed to facilitate the longest possible battery lifespan. The charger can be programmed for a variety of charging curve configurations, and the charger itself is programmed with DSE Configuration Suite Software. Operation is possible during both charging and running, and the charger can be mounted on either a DIN rail or a chassis. The charger's overall output can be increased substantially by linking several units together for combined energy generation.
SPECIFICATIONS:
- Voltage Range (L-N): 90V to 305V
- DC Output: 15 Amp 24 Volt
- Frequency Range: 48 Hz to 64 Hz
- Ripple/Noise: 1%
- Efficiency: >90%
- Regulation:
- Line: <0.5% Vo
- Load: 2% Vo
- Charge Failure Relay: 3 amps at 30 volts/li>
- Protections:
- Short Circuit
- DC Over Voltage
- DC Over Current
- Reverse Polarity
- Over Temperature
- AC Under & Over Voltage
- Operating Temperature Range: -30 °C to +55 °C
- Storage Temperature Range: -30 °C to +70 °C
PRINCIPAL FEATURES AND BENEFITS:
- Current limit can be adjusted up to a maximum of 15 amps
- Can function both as a power supply and a battery charger
- Has protections for both under voltage and over voltage for the AC input and battery charger output
- Battery under voltage alarm
- Automatic self-testing
- Automatic battery detection
DIMENSIONS:
- 3.15" x 8.07" x 5.31"
- WEIGHT: 1.94lb
