OVERVIEW
Deep Sea DSE9461 Battery Charger
Based in the United Kingdom, Deep Sea Electronics produces a wide range of intelligent battery chargers and ships to over 150 countries across the world. Deep Sea Electronics’ products are ideal for an extensive range of applications and come in 12, 24 and 48 volt options.

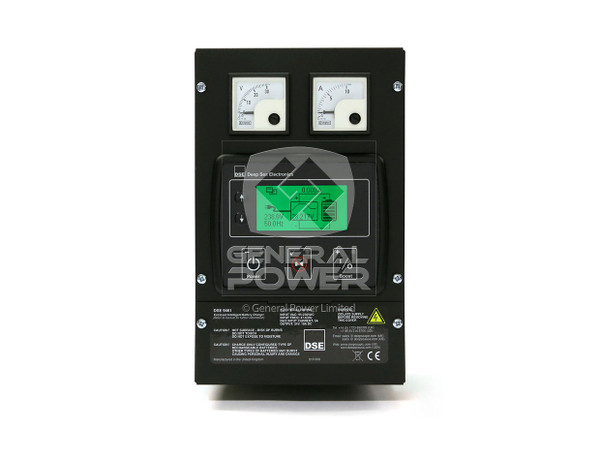

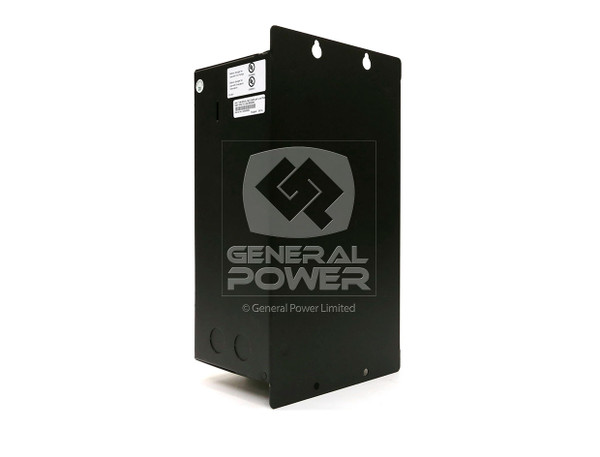

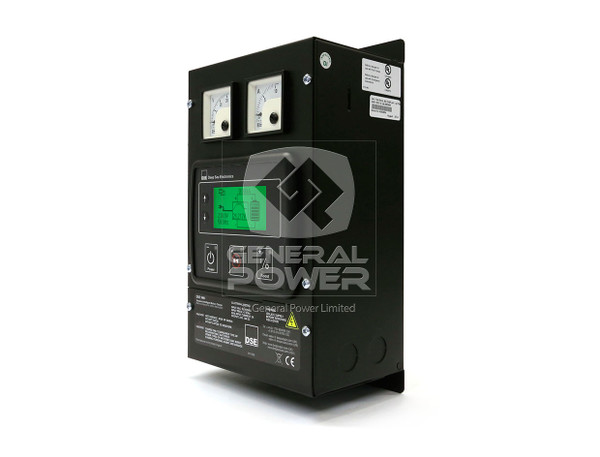

DEEPSEA 9461-12 Generator Battery Charger
The DSE9461-12 10 amp, 24 volt battery charger is immaculately designed for satisfying levels of battery life, utility, security and overall performance. This battery charger is manufactured with both analogue meters and an LCD display as well. Like other battery chargers in the DSE9461 family, this model's charging curve can be adjusted to the users' specifications with PC software. This is a versatile product that can charge batteries and serve as a power supply at the same time.
SPECIFICATIONS:
- Voltage Range (L-N): 90V to 305V
- DC Output: 10 Amp 24 Volt
- Frequency Range: 48 Hz to 64 Hz
- Ripple/Noise: <1%
- Efficiency: >86%
- Regulation:
- Line: <0.5% Vo
- Load: 2% Vo
- Auxiliary Input: 100 mA DC at 12 volts
- Protections:
- Short Circuit
- DC Over Voltage
- DC Over Current
- Reverse Polarity
- Over Temperature
- AC Under & Over Voltage
- Battery Charger Failure
- Operating Temperature Range: -30 °C to +55 °C
- Storage Temperature Range: -40 °C to +85 °C
PRINCIPAL FEATURES AND BENEFITS:
- Designed with an accommodating variety of charging profiles at two, three and four stages
- Current limit can be freely adjusted to the user's preferences
- Charger can be paired with a wide range of different battery types
- The battery's condition can be consistently maintained with both a Manual boost and Automatic boost storage charge modes
- Safety is fully optimized with a wide range of thorough voltage protections
- Digital Microprocessor Technology
- LCD Display and Analog Meters
DIMENSIONS:
- 6.49" x 12" x 4.33"
- WEIGHT: 5.06lb
