OVERVIEW
Deep Sea DSE9461 Battery Charger
With its industry-leading features, DSEPower’s battery charger equipment is applicable to a multitude of operations using 12, 24 or 48 volts. The UK-based brand distributes its products to 150 countries through its comprehensive distributor network and has earned its place as one of the top manufacturers of generator controls and battery chargers in the world.

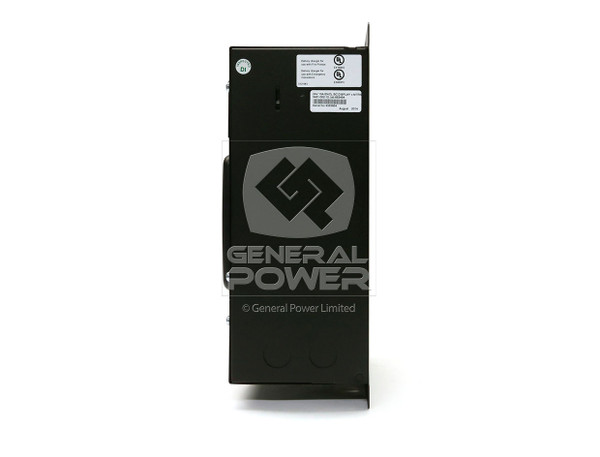

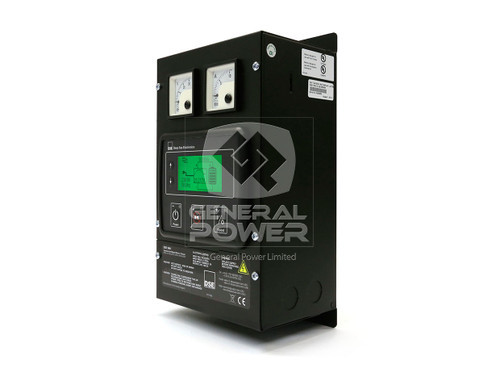

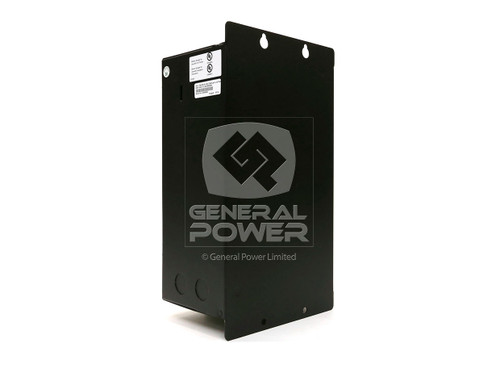

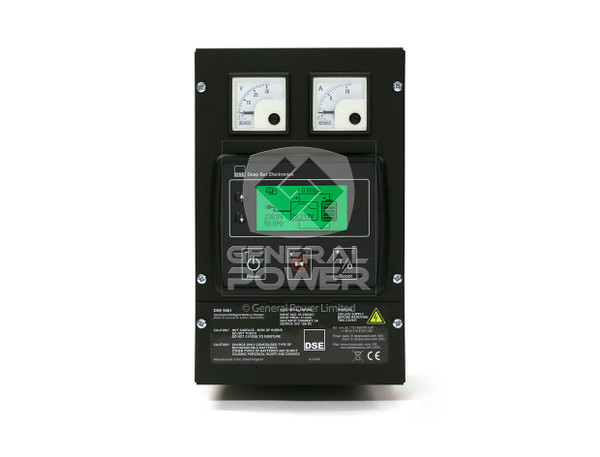

DEEPSEA 9461-02 Generator Battery Charger
The DSE9461-02 10 amp, 12 volt battery charger is designed not only with an LCD display like the DSE9461-01 model, but analogue meters as well. Users have the option of modifying the battery charger's basic charging curves via USB to a PC, though the charger can also simply be used as soon as it's taken out of the box. Inputs and outputs are protected to secure the safety of the charging environment at all times, and even while the charging process is underway, it can be used as a power supply as well.
SPECIFICATIONS:
- Voltage Range (L-N): 90V to 305V
- DC Output: 10 Amp 12 Volt
- Frequency Range: 48 Hz to 64 Hz
- Ripple/Noise: <1%
- Efficiency: >86%
- Regulation:
- Line: <0.5% Vo
- Load: 2% Vo
- Auxiliary Input: 100 mA DC at 12 volts
- Protections:
- Short Circuit
- DC Over Voltage
- DC Over Current
- Reverse Polarity
- Over Temperature
- AC Under & Over Voltage
- Battery Charger Failure
- Operating Temperature Range: -30 °C to +55 °C
- Storage Temperature Range: -40 °C to +85 °C
PRINCIPAL FEATURES AND BENEFITS:
- Flexibly suits a variety of different voltage types in a cost effective manner
- Different installation options that users may choose between for the easiest process of getting the battery charger started
- Specially designed to have a superior degree of speed in its charging cycle
- A full charge is consistently maintained at all times
- Two, three and four-stage charging profiles
- Manual or Automatic boost and storage charge functionality
- LCD Display and Analog Meters
DIMENSIONS:
- 6.49" x 12" x 4.33"
- WEIGHT: 5.06lb
