OVERVIEW

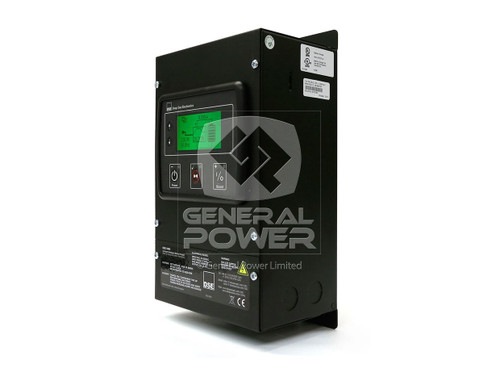

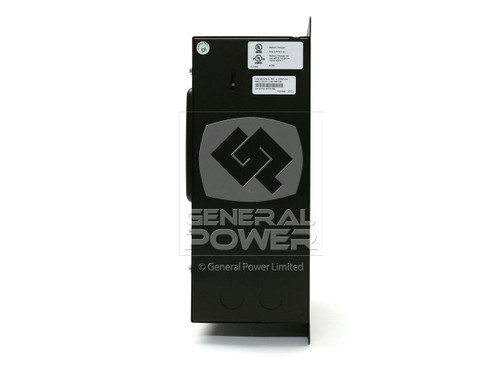

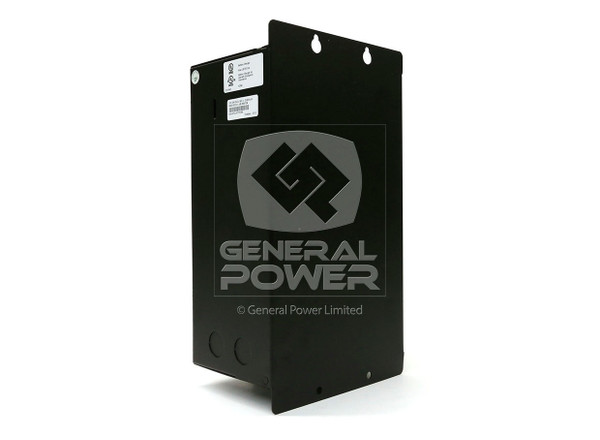

Deep Sea DSE9460-02 Battery Charger
From 1975 until the present day, Deep Sea Electronics has been at the forefront of battery charger equipment manufacturing. With products ranging from 12 to 48 volts, DSE’s power supplies are ideal for almost any requirement and application.
DEEPSEA 9460-02 Generator Battery Charger
The DSE9460-02 5 amp, 12 volt battery charger is made with analogue meters and an LCD display for more thorough status monitoring. This is a model that will suit those who enjoy the freedom of adjusting curve levels to precisely fit their standards. Owners who are slightly more electronically savvy may be able to take fuller advantage of the ability to create custom battery applications with the PC software included.
SPECIFICATIONS:
- Voltage Range (L-N): 90V to 305V
- DC Output: 5 Amp 12 Volt
- Frequency Range: 48 Hz to 64 Hz
- Ripple/Noise: <1%
- Efficiency: >86%
- Regulation:
- Line: <0.5% Vo
- Load: 2% Vo
- Auxiliary Input: 100 mA DC at 12 volts
- Protections:
- Short Circuit
- DC Over Voltage
- DC Over Current
- Reverse Polarity
- Over Temperature
- AC Under & Over Voltage
- Battery Charger Failure
- Operating Temperature Range: -30 °C to +55 °C
- Storage Temperature Range: -40 °C to +85 °C
PRINCIPAL FEATURES AND BENEFITS:
- High level of overall flexibility, extending battery life by a fair amount
- Convenient protections to prevent the risk of failure with prolonged use
- Compatible with most battery types
- Features Digital Microprocessor Technology
- Automatic Boost Mode enhances battery life and performance with cell charge equalization
- Preservers energy with Power Save Mode at full charge capacity

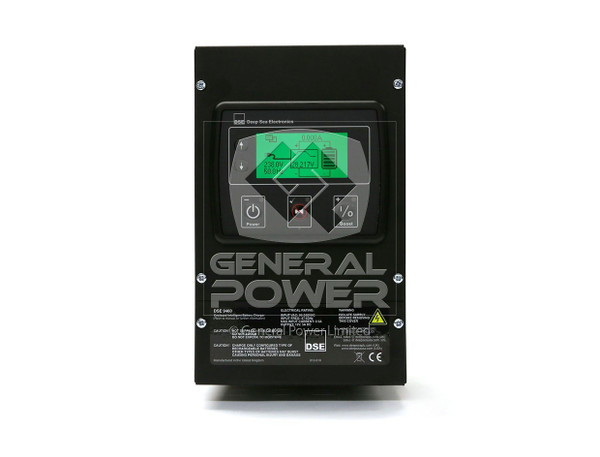

- LCD Display and Analog Meters
DIMENSIONS:
- 6.49" x 12" x 4.33"
- WEIGHT: 5.06lb
