CUMMINS 300 KW Emergency Generator 375 KVA, DQDAC, Brand New
300 DQDAC Cummins Generator, Configurable, EPA Stationary Emergency application



GENERATOR POWER RATINGS:

300KW (375KVA) STANDBY, 270KW (338KVA) PRIME, 3 PHASES, 0.8PF, 60HZ, 1800RPM, 208/120V RECONNECTABLE UP TO 480/277V

300KW GENERATOR POWERED BY PREMIUM INDUSTRIAL COMPONENTS FOR MAXIMUM RELIABILITY AND WORLDWIDE SUPPORT:

• CUMMINS QSL9-G7, Turbocharged, heavy duty diesel engine, 4 stroke, 1800rpm, Liquid cooled, Isochronous Electronic Governor, U.S. EPA TIER 3, Made in USA

• STAMFORD CUMMINS HCI, 12 Leads brushless alternator. IP23 drip-proof protection, Insulation class H. Electronic Automatic voltage regulation, UL1446 listed

• ADVANCED Digital auto-start/stop control panel. All genset parameter, alarms and control functions. RS232 and RS485. UL listed

• MCCB, Main line circuit breaker, set mounted, wired and maximum output rated for complete generator protection. UL listed



BRAND NEW AND FULLY PACKAGED 300 KW DIESEL GENERATOR SET INCLUDES STANDARD:

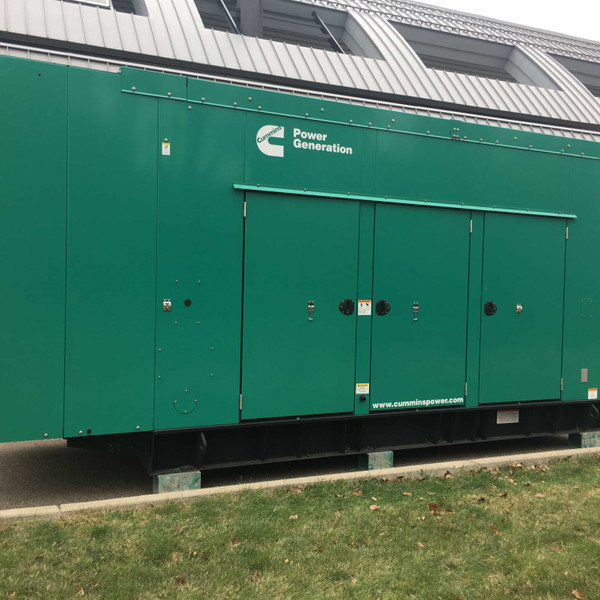

• IP56 rated Weather proof, sound attenuated enclosure. 12 gauge electro zinc coated steel for maximum corrosion resistance

• AUTO start/stop control feature included for remote start via 2-Wire dry contact

• U.S. EPA TIER 3 compliant engine for Stationary Standby application as per current U.S. Environmental Protection Agency regulations

• Engine Governor and Regulation: Electronic Isochronous for extremely accurate +/-5% speed regulation

• 12 lead re-connectable Alternator, brushless, single bearing, IP23 drip proof, Insulation class H/H, AVR for +/- 1.0% regulation

• Radiator for wiring Temperature of 50°C [122°F] max with mechanical fan

• Microprocessor based control panel

• 24V charging alternator and 24V Electric starter motor

• 24V charged DC starting battery with electrolyte and cables

• Critical class silencer installed inside the enclosure

• Mechanically welded chassis with anti-vibration isolators and forklift pockets for safer handling

• Each unit prototype and individually factory load bank tested prior to shipping in lSO9001:2008 Quality Controlled facilities

• User guide, commissioning and maintenance manual. Wiring diagrams included. (English)

• Compliant with ISO3046, ISO8528, BS4999, BS5514, BS5000PT99, AS1359, IEC34, UTE5100, VDE0530 and ISO9001:2008



100% MADE IN USA AND WORLD CLASS SUPPORT:

• QUALITY: 100% designed, engineered, manufactured and individually load bank tested in state-of-the-art IS09001 facilities in the U.S.

• INTERNATIONAL WARRANTY: Comprehensive 2-year Standby power warranty backed by the largest worldwide service network

• SOUND LEVELS: Available with Level-2 and Level-3 super silent enclosures designed to meet and exceed North American and European 2000/14EC Low sound level directives



BEST-SELLING CONFIGURATION:

• DQDAC, Genset, Configurable Diesel

• U.S. EPA, Stationary Emergency Application

• 300DQDAC, Diesel Genset, 60Hz, 300kW

• Duty Rating-Standby Power (ESP)

• Emission Certification, EPA, Tier 3, NSPS CI Stationary Emergency

• Listing-UL 2200

• Voltage-120/208, 3 Phase, Wye, 4 Wire

• Alternator-60Hz, 12 Lead, Broad Range, 125/105C

• Exciter/Regulator-Permanent Magnet Generator, 3 Phase Sensor

• Steel Sound Attenuated Level 2 Enclosure, with Exhaust System

• Enclosure Color-Green, Steel

• Wind Rating-150 MPH, Steel Housing

• Lifting Base-No Fuel Tank

• Fuel Water Separator

• Control Mounting-Left Facing

• PowerCommand 2100 Generator Controller

• Backlit Digital Control Display

• Stop Switch-Emergency

• Control Display Language-English

• Circuit Breaker or Entrance Box or Terminal Box-Right Only

• Terminal Box-Low Voltage, Left-None

• Circuit Breaker-800A, Right Circuit Breaker on Right side, 3-Pole, UL 600, IEC 690 100%

• CB or EB or TB-Top Entry, Left-None

• Bottom Entry, Right

• Engine Governor-Electronic, Isochronous

• Engine Starter-24 Volt DC Motor

• Engine Air Cleaner-Normal Duty

• Battery Charging Alternator

• External Battery Charger-12 Amp, Regulated

• Engine Cooling-Radiator, High Ambient Air Temperature, Ship Fitted

• Shutdown-Low Coolant Level

• Engine Coolant-50% Antifreeze, 50% Water Mixture

• Coolant Heater-120V, Single Phase

• Engine Oil

• Genset Warranty-2 Years Base

• Literature-English

• Packing-None, Base Mounted Housing



FAQs:

How much fuel does a 300 kW generator use?

At peak load, a 300 kW generator uses approximately 21.5 gallons of fuel per hour. This means that if you run a 300 kW generator at peak load for the length of a typical 8 hour work day, the generator will use 172 gallons of fuel.
