OVERVIEW

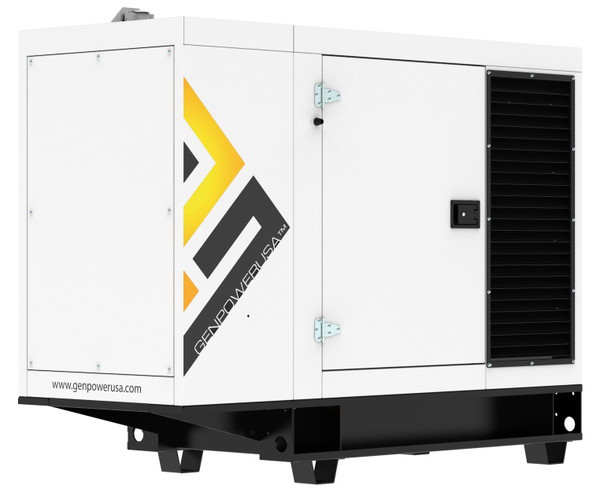

30KW KUBOTA GENERATOR 30KVA, BRAND NEW
QUALITY:
100% DESIGNED, ENGINEERED, ASSEMBLED AND TESTED IN ISO9001 AND CE CERTIFIED FACILITIES
POWER RATINGS:
30KW (30KVA) STANDBY, 25.6KW (25.6KVA) PRIME, 1PHASE, 1.0PF, 60HZ, 240V
EMISSIONS COMPLIANCE:
U.S. EPA TIER i4 compliant engine for Stationary Emergency application as per current U.S. Environmental Protection Agency regulations
POWERED BY A HEAVY DUTY INDUSTRIAL ENGINE FOR MAXIMUM DURABILITY, EXCELLENT RELIABILITY AND WORLDWIDE SUPPORT:
-KUBOTA V3300-E3BG, 1800RPM, Naturally aspirated
-Electronic governor
-Industrial-grade cooling system with fan guards and coolant drain extension with in-line valve
PREMIUM INDUSTRIAL-GRADE ALTERNATOR:
-STAMFORD S1L2-J1, 4 Leads, brushless
-Full load rated with thermo-magnetic switch protection
-Skewed rotor and 2/3 pitch winding suppress triple harmonics and guarantee a superior voltage waveform
-Class H Insulation and Self-ventilated drip-proof design
-Electronic automatic voltage regulation
ADVANCED DIGITAL CONTROLLER:
- DEEP SEA ELECTRONIC DSE4520MKII, Microprocessor based generator controller, UL listed.
- User-friendly, 4-line back light LCD icon display, with on-screen line-diagram functionality.
- Manual and Auto Operation Mode, with 2-wire remote start/stop capability.
- 50 event log & 50+ Engine/ECU/Alternators alarms. Warning, Electrical Trip and Shutdown Alarms.
49-GAL SINGLE-WALLED INTEGRAL METALLIC FUEL TANK FOR DAILY AUTONOMY:
- 25-hours runtime autonomy @ 75% PRP, 31-hours runtime autonomy @ 100% PRP
- Electronic fuel level sender and visual gauge
- Programmable low-level, high-level alarms and shutdowns
SUPER-SILENT, CORROSION-RESISTANT, STEEL ENCLOSURE FOR MAXIMUM LONGEVITY AND EXCELLENT SOUND ATTENUATION:
-RESIDENTIAL SILENCER: Internally mounted in sound attenuated plenum with vertical discharge for superior sound reduction
-CONSTRUCTION: 12GA, steel panels with stainless steel hardware for lifetime corrosion resistance
-TYPE: IP56 / outdoor rated / Weather proof / silent design compliant to ISO12944 1000+ hour salt-spray test
-FINISH: UV and fade-resistant, high temperature cured, RAL9003-white polyester powder paint
-SOUND ATTENUATED DISCHARGE PLENUM: Weather-resistant horizontal air discharge outlet with sound attenuating traps
-SOUND ATTENUATING MATERIAL: Up to 51mm (2in) Acoustic insulation with hydrocarbon sealing film for maximum sound absorption, flame resistance and moisture repellence
VERSATILE CONFIGURATION IS FULLY PACKAGED AND READY FOR MOST STANDBY AND PRIME POWER APPLICATIONS:
-7ga, heavy duty mechanically-welded steel skid
-Master cabinet with mechanically-compartmentalized housing for all control/power/breaker/connections components and vertical conduit access
-Main line breaker, 3 pole, set mounted, wired and maximum output rated for complete protection
-Heavy-duty AVM’s isolate engine/radiator/generator from frame to reduce vibration and noise
-Electrolyte-charged battery with rack, cables and rubber-booted connections
-Oil drain extension with in-line valve
ENGINEERED TO THE HIGHEST STANDARDS AND FOR MAXIMUM PEACE OF MIND:
-QUALITY: Each unit prototype and individually factory load bank tested prior to shipping in ISO9001 Quality facilities
-INTERNATIONAL WARRANTY: up to 2 years or 2000 hours comprehensive international warranty coverage, T&C’s apply
-PERFORMANCE: The generator accepts 100% rated load in one step as per NFPA110 and meets ISO8528-5 class G-2 for transient response
-DESIGNED TO INTERNATIONAL STANDARDS: ISO9001; ISO 8528, 3046, 7637; EN 61000-6-3, 61000-6-2, 55011; NEMA ICS 10, MG1, AB1; NEC 700, 701, 702; IEC 60034-1:2017
-NFPA COMPLIANT: NFPA 37 and NFPA Type 10 Level 1 capable (when equipped with the necessary accessories)
