OVERVIEW

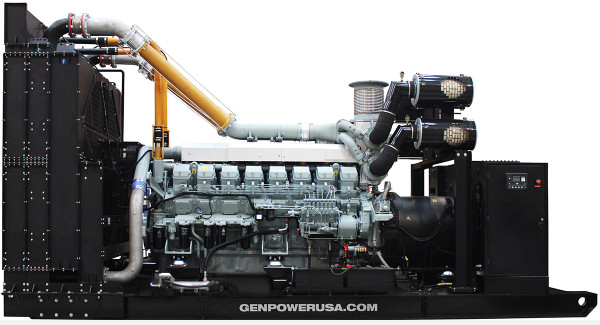

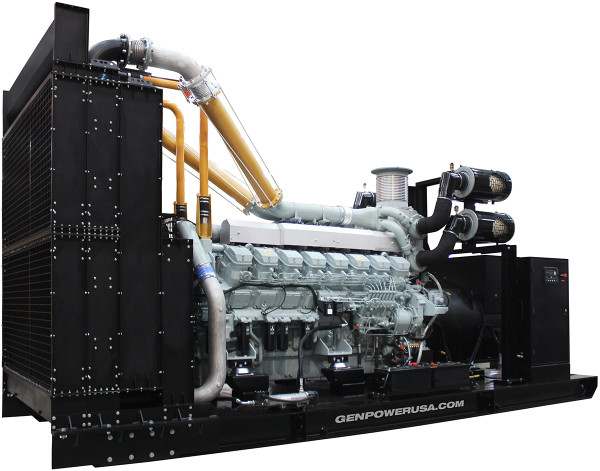

1000KW 1250KVA MITSUBISHI POWERED DIESEL GENERATOR SET, BRAND NEW
QUALITY:
100% DESIGNED, ENGINEERED, ASSEMBLED AND TESTED IN ISO9001 AND CE CERTIFIED FACILITIES
POWER RATINGS:
1000KW (1250KVA) STANDBY, 950KW (1188KVA) PRIME, 3PHASES, 0.8PF, 60HZ, 208-480V
EMISSIONS COMPLIANCE:
U.S. EPA TIER 2 compliant engine for Stationary Emergency application as per current U.S. Environmental Protection Agency regulations
POWERED BY A HEAVY DUTY INDUSTRIAL ENGINE FOR MAXIMUM DURABILITY, EXCELLENT RELIABILITY AND WORLDWIDE SUPPORT:
-MITSUBISHI S12H-Y2PTAW-1, 1800RPM, Turbocharged and intercooler
-Electronic isochronous governor
-Industrial-grade cooling system with fan guards and coolant drain extension with in-line valve
PREMIUM INDUSTRIAL-GRADE ALTERNATOR:
-STAMFORD S6L1D-F41, 12 Leads, brushless
-Full load rated with thermo-magnetic switch protection
-Skewed rotor and 2/3 pitch winding suppress triple harmonics and guarantee a superior voltage waveform
-Class H Insulation and Self-ventilated drip-proof design
-Electronic automatic voltage regulation
ADVANCED DIGITAL CONTROLLER:
-DEEP SEA ELECTRONICS DSE7320MKII, Microprocessor based generator controller with dual-core main processor and extended memory. UL listed
-User-friendly, large, 4-line backlit LCD text display with support for up to 7 display languages
-Manual, Test and Auto Operation Mode with 2-wire remote start/stop capability
-250 event history log & 50+ fully configurable alarms
-Automatic shutdowns: Under/Over voltage; Over load; Over current; Under/Over frequency; Under/Over speed; High coolant temperature; Low oil pressure; Low coolant level

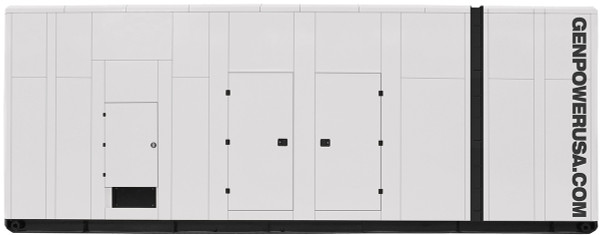

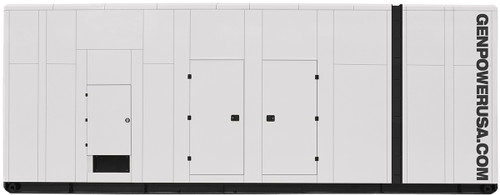

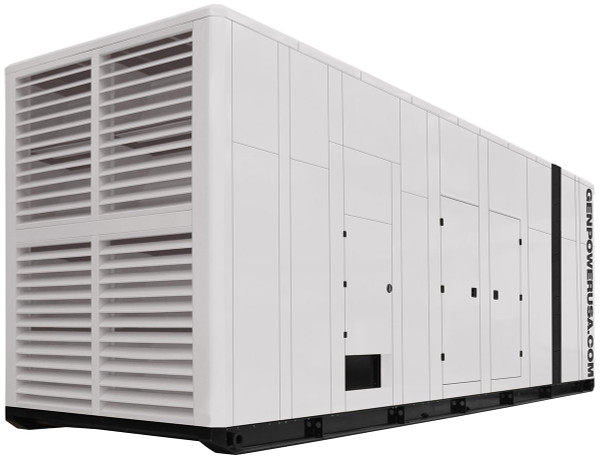

700-GAL SINGLE-WALLED INTEGRAL METALLIC FUEL TANK FOR DAILY AUTONOMY (ENCLOSED):
- 11-hours runtime autonomy @ 75% PRP, 8-hours runtime autonomy @ 100% PRP
- Electronic fuel level sender and visual gauge
- Programmable low-level, high-level alarms and shutdowns
305-GAL SINGLE-WALLED INTEGRAL METALLIC FUEL TANK FOR DAILY AUTONOMY (OPEN-SKID):
- 5-hours runtime autonomy @ 75% PRP, 4-hours runtime autonomy @ 100% PRP
- Electronic fuel level sender and visual gauge
- Programmable low-level, high-level alarms and shutdowns
VERSATILE CONFIGURATION IS FULLY PACKAGED AND READY FOR MOST STANDBY AND PRIME POWER APPLICATIONS:
-7ga, heavy duty mechanically-welded steel skid
-Master cabinet with mechanically-compartmentalized housing for all control/power/breaker/connections components and vertical conduit access
-Main line breaker, 3 pole, set mounted, wired and maximum output rated for complete protection
-Heavy-duty AVM’s isolate engine/radiator/generator from frame to reduce vibration and noise
-Electrolyte-charged battery with rack, cables and rubber-booted connections
-Oil drain extension with in-line valve
ENGINEERED TO THE HIGHEST STANDARDS AND FOR MAXIMUM PEACE OF MIND:
-QUALITY: Each unit prototype and individually factory load bank tested prior to shipping in ISO9001 Quality facilities
-INTERNATIONAL WARRANTY: up to 2 years or 2000 hours comprehensive international warranty coverage, T&C’s apply
-PERFORMANCE: The generator accepts 100% rated load in one step as per NFPA110 and meets ISO8528-5 class G-2 for transient response
-DESIGNED TO INTERNATIONAL STANDARDS: ISO9001; ISO 8528, 3046, 7637; EN 61000-6-3, 61000-6-2, 55011; NEMA ICS 10, MG1, AB1; NEC 700, 701, 702; IEC 60034-1:2017
-NFPA COMPLIANT: NFPA 37 and NFPA Type 10 Level 1 capable (when equipped with the necessary accessories)
