OVERVIEW

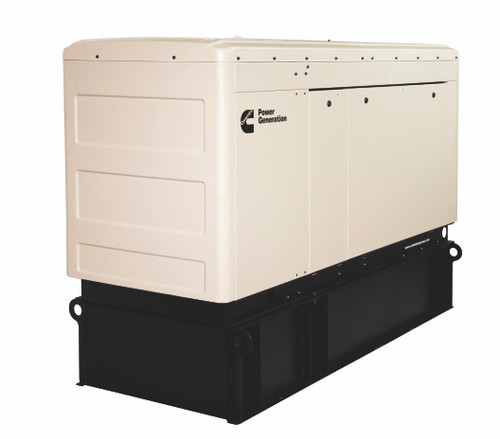

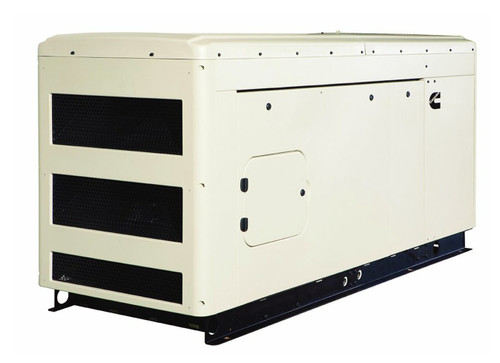

CUMMINS 50 KW Generator 50 KVA, Single Phase, Brand New
- Generator Model: 50 KW Cummins C50D6
- Generator SKU: Cummins A063P966
U.S EPA, Stationary Emergency Application
Duty Rating – Standby Power (ESP)
Listing – UL 2200
NFPA 110 Type 10 Level 1 Capable
Emission Certification, EPA, Stationary Emergency – 40CFR60
Voltage – 120/240, 1 Phase, 3 Wire
Alternator – 60Hz, 4L, 240/120, 1 Phase, 120C°, 40C° Ambient
Exciter/ Reg. – Torque Match
Aluminum Sound Attenuates Level 1 Enclosure, with Exhaust System
Enclosure – Wind Load 180 MPH, ASCE7-10
Enclosure Color – Sandstone
Skid-base – Housing Ready
Control Mounting – Right Facing
PowerCommand 1.1 Controller
Gauge – Oil Pressure
Control Display Language – English
Load Connection – Single
Circuit Breaker, 150A, UL
Engine Starter – 12 Volt DC Motor
Engine Air Cleaner – Normal Duty
Battery Charger – 6 Amp, Regulated
Engine Cooling – Radiator, High Ambient Air Temperature, Ship Fitted
Shutdown – Low Coolant Level
Extension – Coolant Drain
Engine Coolant – 50% Antifreeze, 50% Water Mixture
Coolant Heater
Extension – Oil Drain
Engine Oil
Genset Warranty – 2 Years Base
Literature – English
Packing – Skid, Poly Bag
Larger Battery Rack
